HotProfiler - Scope of Supply

Overview Details Features Scope of Supply Specification

HotProfiler overview diagram

Mill gauge housing

  • - 8-18 laser distance sensors
  • - Pyrometer
  • - Motorized lifting table
  • - Internal airflow measurement and control
  • - Quick release electrical & air connections

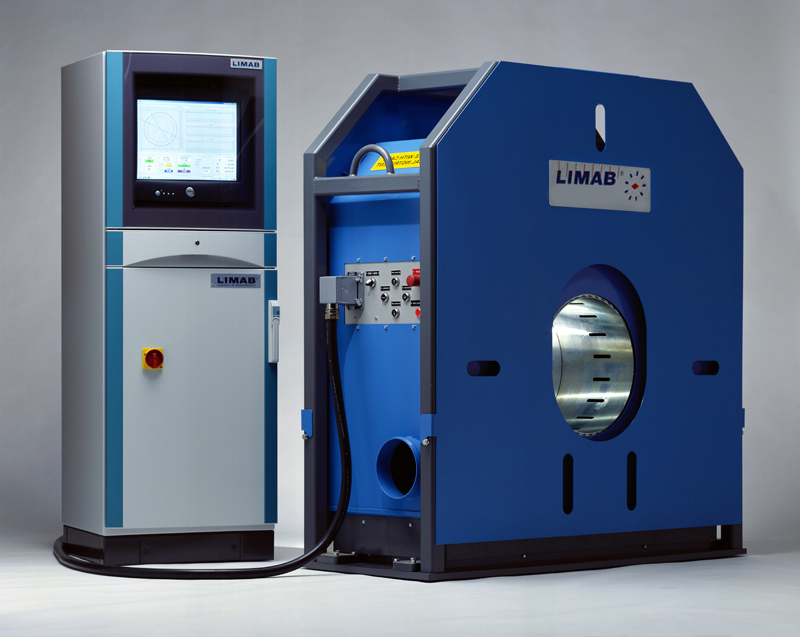

 HotProfiler mill gauge housing

Cubicle

  • - Housing server PC
  • - LCD monitor & keyboard
  • - Server software



Cubicle

Large remote displays

  • - Key dimensions operator displays



Large display

Client software

  • - Access real time data over TCP/IP network





HotProfiler operator screen

Calibration fixture

  • - Simple user calibration verification



HotProfiler calibration fixture

Air conditioning unit

  • - Dual medium pressure fan and filter units
  • - 2nd fan provides backup in case of failure
